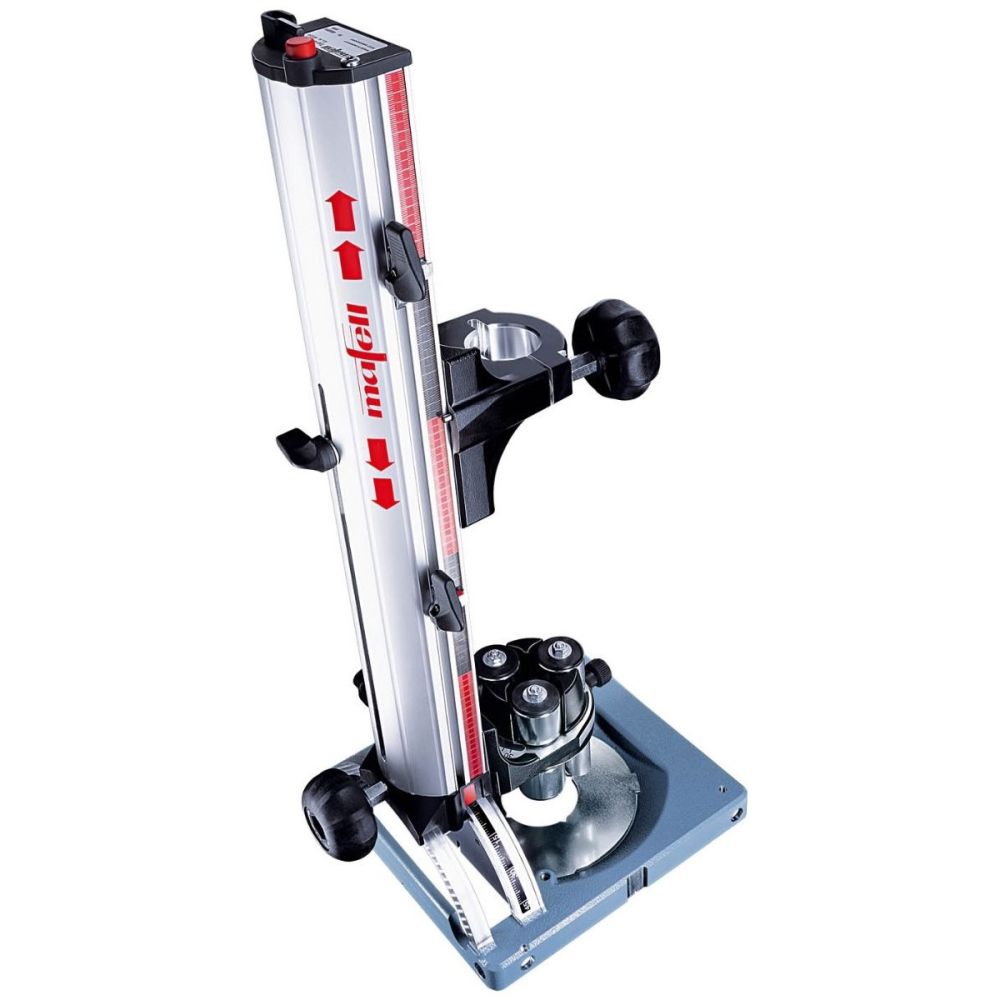

Mafell BST Drilling Station

Rating:
100% of 100

Download BST Drilling Stations Brochure

As low as $748.00

SKU
BST Station
Mafell BST Drilling Station is available to buy in increments of 1
Customize Mafell BST Drilling Station

* Required Fields

Mafell BST Drilling Station is available to buy in increments of 1
Your Customization
Mafell BST Drilling Station
Mafell BST Drilling Station

In stock

$748.00

Summary

    Mafell's new line of drilling stations are brilliantly engineered and constructed with the highest quality materials for a superior drilling experience.  Using a lightweight but rigid single aluminum column and continually adjustable iris-like guide rollers, these drill guides offer unprecedented accuracy.

    The "S" versions can be precisely set to +/- 45° and an innovative template accessory system enables the user to produce highly accurate series of patterned holes.  Notches in the base plate enable easy alignment to a marked location and a parallel fence is available for end grain drilling or to reference drill from the edge of a timber.

    Mafell drill stands include top and bottom stops, as well as an adjustable tensioning cable which effortlessly returns the drill to its starting position.  And best of all, Mafell drill stations are compatible with high quality WoodOwl Ultra Smooth Tri-Cut Auger Bits so you can cut both accurate and smooth holes in your timbers.

    Mafell drill stations are also compatible with the Makita 6302H 1/2" Drill and a variety of other model drills.  Contact Timberwolf Tools at 1-800-869-4169 for information on whether your drill is compatible with Mafell drill stations.

    Learn more about the BST's many uses in Mafell's Product Training for Carpentry Machines brochure.


    Specifications

    BST 460BST 460SBST 650S
    Drilling depth using WoodOwl* bit: 9-15/16" 9-1/2” 15-1/2”
    Maximum drill bit length: 18-1/16" 18-1/16" 25-9/16"
    Drill bit diameter range: 5/16" to 1-1/8" 5/16" to 1-1/8" 5/16" to 1-1/8"
    Drill collar diameter: 1-11/16" 1-11/16" 1-11/16"
    Tilt range: n/a 45° 45°
    Weight: 11.3 lbs 12.3 lbs 13.3 lbs
    SKU#: 961211 961215 961216
    2017 Price: $748.00 $872.00 $928.00

    *Each of these stations can drill deeper than these figures by implementing a number of different factors.  If you are looking for that extra inch on your project and have questions about how to do this, please give us a call at 1-800-869-4169!


    Accessories

    • Parallel fence and other accessories are available below
    • 80% of BST customers also order a Parallel Fence to keep their station square, measure from the side of the timber, and protect against drill torque
    • The Copying Insert and Special Drill Bit accessories are used to quickly drill arrays of holes for knife plate joinery (maximum 5/8" bolt diameter)
    • BST drilling stations are compatible with 1/2" chuck drills with a 43mm collar (approximately 1-11/16") such as the Makita 6302H 1/2" Drill
