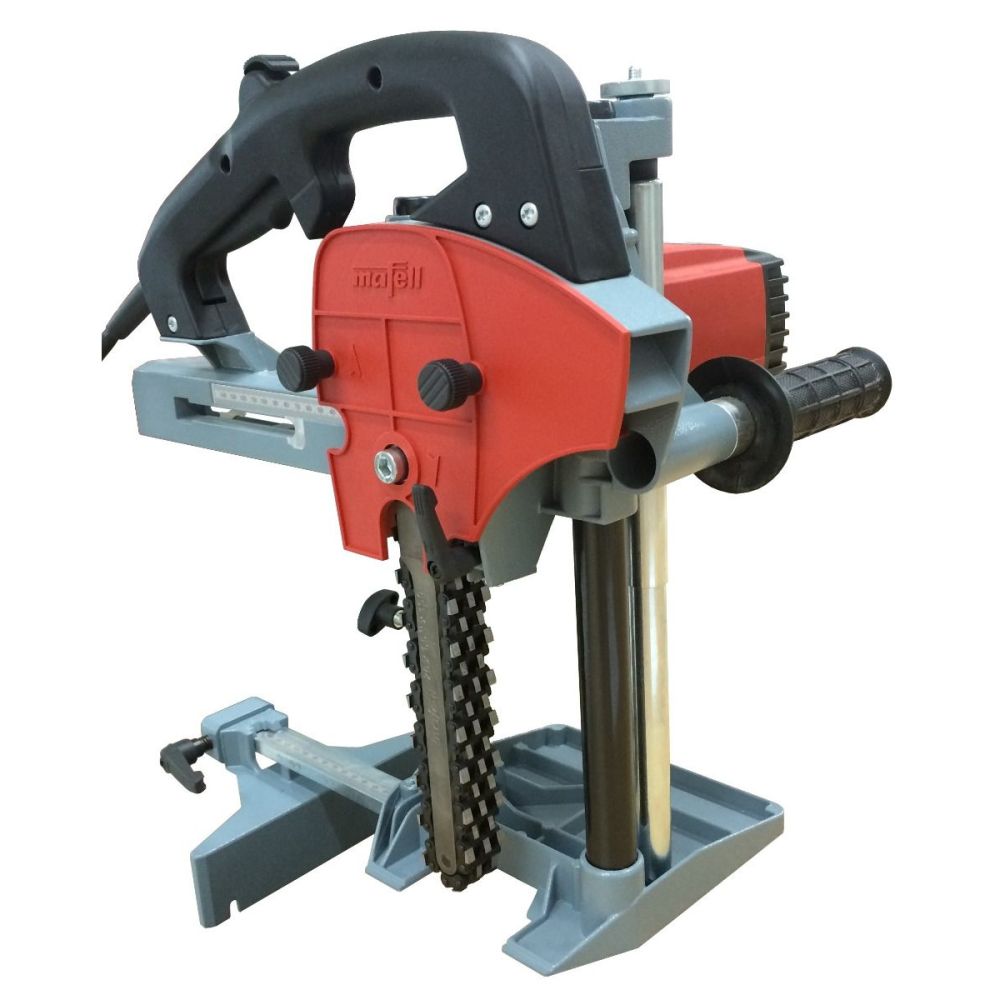

Mafell LS 103Ec Chain Mortiser
- Fastest chain mortising because no clamping is needed
- Choice of 1.5" or 2.0" chain and 120 V or 240 V motor
- Plunges up to 5-7/8" deep (Need More?)
- Mafell invented the chain mortiser in 1926 and is still decades ahead of the competition in power and durability
Download Carpentry Machines Brochure
Download LS 103Ec Instruction Manual
and FG 150 Instruction Manual
As low as $3,970.00
SKU
924222 / 924250 / FG 150
Mafell LS 103Ec Chain Mortiser is available to buy in increments of 1
The Mafell LS 103Ec is a truly impressive chain mortiser, featuring a powerful 120 V or 240 V motor, chain bars which do not require lubrication, and long-lasting chains. This mortiser is available with 1.5" and 2.0" chain/bar setups to rapidly produce timber frame mortises with the sturdy FG 150 mortising stand. The tensioning system of the LS 103Ec allows for fast chain replacement. Even retightening the chain is quick and easy without having to remove the chain guard.
Specifications
| Mortising depth: | 5-7/8" |
| Mortising width: | 1-1/16" by 1.5" or 2.0" |
| Nominal speed - no load: | 4,400 rpm or 4,050 rpm |
| Motor: | 120 V or 240 V / 60 Hz |
| Current: | 20 A or 13 A |
| Weight with stand: | 29.7 lbs |
Standard Equipment
- Stop Plate
- Two Allen Keys
- LU202 Chain Lubricant (WITH GROUND SHIPMENTS ONLY)
- 32.8 ft Cord
Frequently Asked Questions
Shawn Tuttle
Precision Sharpening Inc.
3018 Princeton Drive NE
Albuquerque, NM 87107
505-884-8229
Kyle Murphy
Mortise Sharp
P.O. Box 1055
Madison Heights, VA 24572
207-577-3391
Precision Sharpening Inc.
3018 Princeton Drive NE
Albuquerque, NM 87107
505-884-8229
Kyle Murphy
Mortise Sharp
P.O. Box 1055
Madison Heights, VA 24572
207-577-3391
Customers recommend spraying chain with LU202 Spray every 30 to 60 minutes of use
Barr Specialty Tools
P.O. Box 4335
McCall, ID 83638
800-235-4452
Lie-Nielsen Toolworks
P.O. Box 9
Warren, ME 04864
800-327-2520
P.O. Box 4335
McCall, ID 83638
800-235-4452
Lie-Nielsen Toolworks
P.O. Box 9
Warren, ME 04864
800-327-2520
Accessories
- Additional chains and replacement components are available below
- 35% of new LS 103Ec customers also order an extra chain so they can keep mortising while one chain is being sharpened
