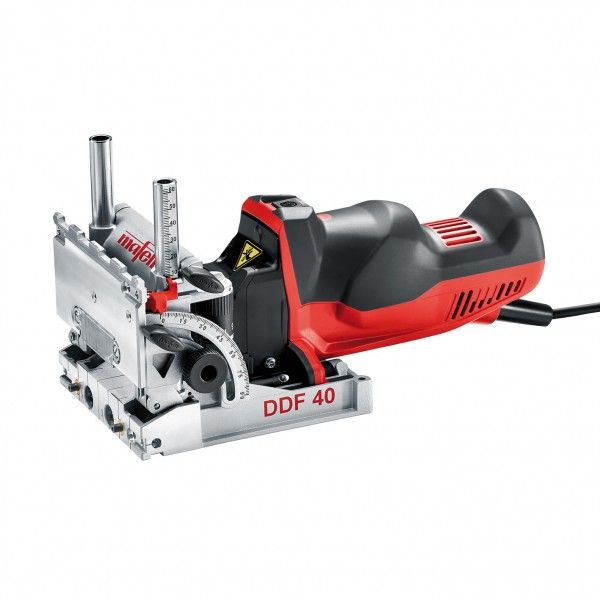

Mafell DDF 40 Duo Dowel System

  • Ideal flat base for joining cabinets and shelves, producing strong dowel joints that align perfectly
  • Powerful 230 V motor
  • Compatible with inexpensive metric dowels from other manufacturers

Download DDF 40 Brochure

$1,290.00
SKU
918602
Mafell DDF 40 Duo Dowel System is available to buy in increments of 1

The new Mafell DDF 40 Duo Dowel System introduces greater ease and efficiency to the task of drilling accurate dowel holes.  Its hallmarks include a broad range of applications, an ergonomic design, a flat base plate for easy handling, and joints that are absolutely aligned and stable.  Whether in the workshop or on site, no other 230 V power tool can produce such high-quality joints.

When producing corner joints, partitions, or rows of holes, the DDF 40 offers not only the precision of a stationary machine, but also the cost savings associated with standard wooden dowels.  In addition, the technique of using dowels in pairs achieves outstanding stability at the dry assembly stage.

Smart accessories make the DDF 40 a convenient multi-purpose machine.  In most cases you do not need to use a template or mark out the work, thanks to the variety of stops and fences.  This MaxiMAX version in the “T-Loc” systainer includes the innovative SA 320 Side Fence Set and LA Stop Pin Insert for Battens in the Standard Equipment.

Mafell has put together an excellent DDF 40 Brochure and a host of videos showing the many different ways in which the DDF 40 can be used:


Tutorial:  Corner Joint


Tutorial:  Partition/Shelf


Tutorial:  Row of Holes


Tutorial:  Miter Corner Joint


Tutorial:  Frame Joint


Tutorial:  Batten Joint


Tutorial:  Rabbet Joint


Tutorial:  ZAG Additional Stop Set


Tutorial:  ZA Auxiliary Rest


Tutorial:  SA 320 Side Fence Set


Specifications

Drilling depth: 0 to 1-9/16"
Drill bit spacing: 1-1/4"
Tilt range: 0 to 90°
Chuck diameter: 5/16"
Maximum bit diameter: 1/2"
Minimum bit diameter: 1/8"
Nominal speed - no load: 8000 rpm
Motor: 230 V
Current: 3.9 A
Weight: 6.2 lbs

Standard Equipment

  • Two 6mm Carbide Drill Bits (~1/4")
  • Two 8mm Carbide Drill Bits (~5/16")
  • 6 x 30mm Dowels (350 Pieces)
  • 8 x 30mm Dowels (200 Pieces)
  • Two Anti-Slip Mats
  • 8.4 fl oz Empty Glue Bottle
  • 5/16" Dowel Nozzle
  • Hose Connector
  • Allen Key
  • ZA Auxiliary Rest
  • ZAG Additional Stop Set
  • PAZ Position Indicator
  • SA 320 Side Fence Set
  • LA Stop Pin Insert for Battens
  • 13.1 ft Cord
  • T-MAX Carrying Case
