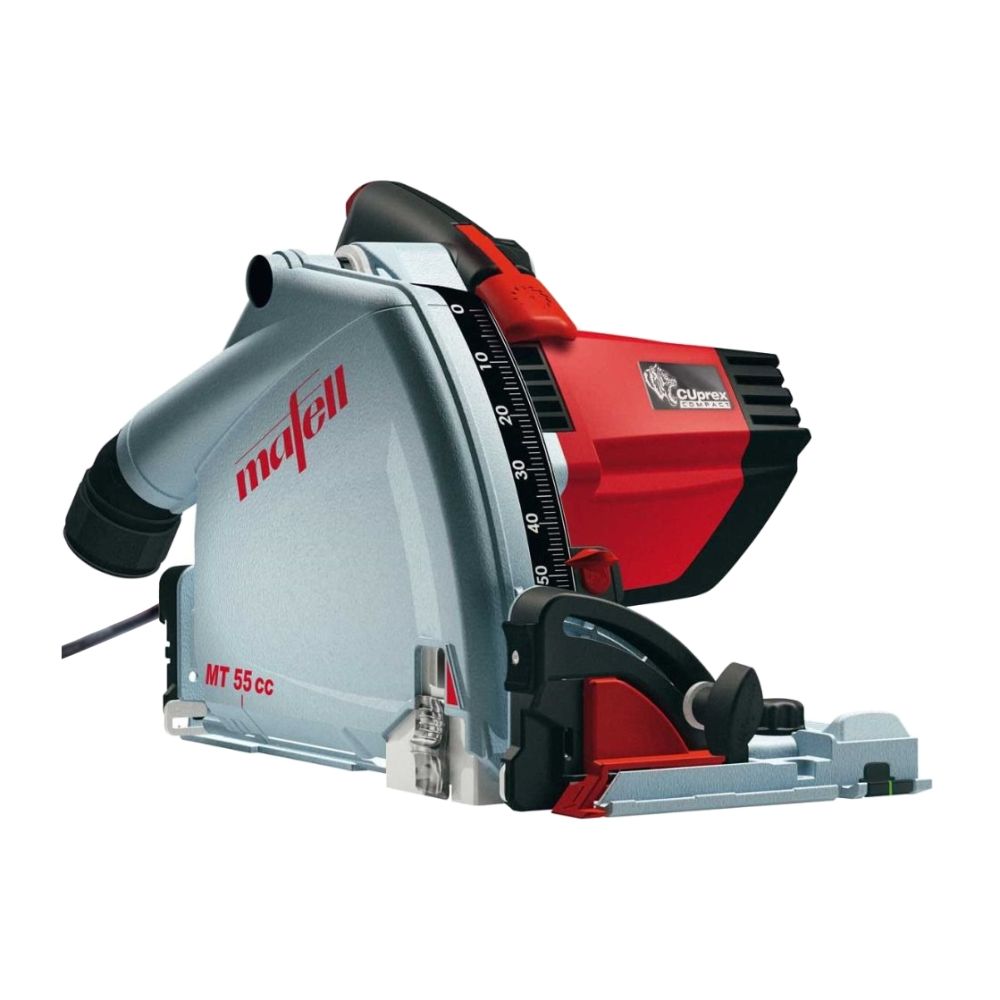

Mafell MT55cc Plunge/Track Saw

100% of 100
  • The ultimate track saw for cutting expensive materials up to 2" thick with no margin for error
  • Powerful 10 amp CUprex Compact motor
  • Compatible with Mafell Guide Rail System and other guide rail systems as well

Download MT55cc Brochure

917638 / 917656
Mafell MT55cc Plunge/Track Saw is available to buy in increments of 1

Circular sawing reaches its apex with the MT55cc Plunge/Track saw.  As a plunge cut saw, the saw blade is contained in the body of the saw.  This makes it safer and easier to use on a track system.  With or without an extraction vacuum, it also creates a cleaner workspace because the dust is contained in the guard.  Cutting depth adjustments can be made precisely using the pointer on the scale.  The angle adjusts from 0 to 45 degrees, but can be overridden to +48 or -1 when a little more is needed in either direction.  A scoring system to 2.5mm depth is available for cutting laminates splinter-free.  Many other features are described in the MT55cc Brochure.


Cutting depth at 0° on track: 0 to 2"
Cutting depth at 45° on track: 0 to 1-3/8"
Cutting depth at 0° off track: 0 to 2-3/16"
Cutting depth at 45° off track: 0 to 1-9/16"
Tilt range: -1 to 48°
Saw blade diameter: 6-1/4" to 6-3/8"
Nominal speed - no load: 3,600 to 6,250 rpm
Motor: 120 V / 60 Hz
Current: 10 A
Weight: 10 lbs

Standard Equipment

  • 48T Fine-Cutting Carbide Blade
  • Allen Key
  • 13.1 ft Cord
  • T-MAX Carrying Case
