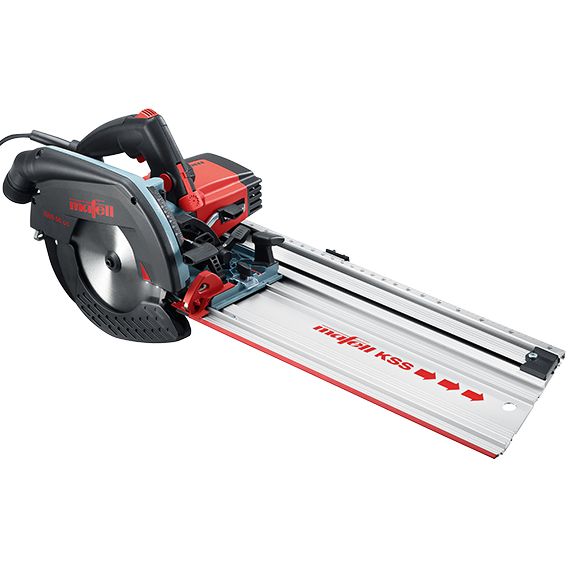

Mafell KSS 50cc Cross-Cutting System

Rating:
100 % of 100
  • Fast and accurate cross-cutting up to 16" long
  • Up to 2" cutting depth on track
  • Only 12 lbs including track
  • Compatible with Mafell Guide Rail System

Download KSS 50cc Brochure
Download KSS 50cc Instruction Manual
and Guide Track 400 Instructions

$1,120.00
SKU
918923
Mafell KSS 50cc Cross-Cutting System is available to buy in increments of 1

The next generation of the KSS 400 is here:  now with a deeper cut, more power, and bright LEDs to highlight your cutting line!

Stop carrying those heavy tools to your worksite!  The KSS 50cc can take the place of a chop saw using its cross cutting system.  It can emulate a table saw, and make long cuts using the Mafell Guide Rail System.  It also can function as a regular circular saw since the quick-release catch easily detaches the saw from the guide track.  Three saws in one!  This enables a carpenter to make accurate and clean cuts at the work location without having to walk back and forth to stationary saws, saving energy and time.

The KSS 50cc will forever change the way you think about cutting your timbers!  This powerful and innovative circular saw is connected to a unique aluminum guide track composed of a friction pad on the bottom side of the guide and an adjustable "smart" stop for either perfectly square cuts or precise diagonal cuts up to a 60° angle.  Its handling is unbeatable!  You simply place the guide track up against the leading edge of the stock and push the saw through the wood, without needing to guide the saw or follow the line by eye.  The hard rubber edge of the aluminum guide prevents splintering of the top surface of the wood, even during multiple angle cuts.

Thanks to magnesium die-cast components, the entire KSS 50cc system weighs only 12 lbs.  The FLIPPKEIL riving knife withdraws into the body of the saw during plunge cuts and then returns to its safety position as you advance forward with your cut.  Once the cut has been executed, the saw automatically returns to the starting position on the aluminum track via an integrated polyethylene cable.  Since this saw can cut up to 1-5/8" deep at a 45° angle, the KSS 50cc can also dramatically speed up framing carpenters' productivity and accuracy while cutting "2-by" studs, joist and rafters.


Specifications

Cutting depth at 0° on track: 0 to 2"
Cutting depth at 45° on track: 0 to 1-5/8"
Cutting depth at 0° off track: 0 to 2-1/4"
Cutting depth at 45° off track: 0 to 1-7/8"
Tilt range: 0 to 45°
Saw blade diameter: 6-5/8"
Nominal speed - no load: 5,700 rpm
Motor: 120 V / 60 Hz
Current: 11.6 A
Weight with track: 12 lbs

Standard Equipment

  • Guide Track 400  (16")
  • 32T Cross-Cutting Carbide Blade
  • Allen Key
  • 13.1 ft Cord

Accessories
